Description

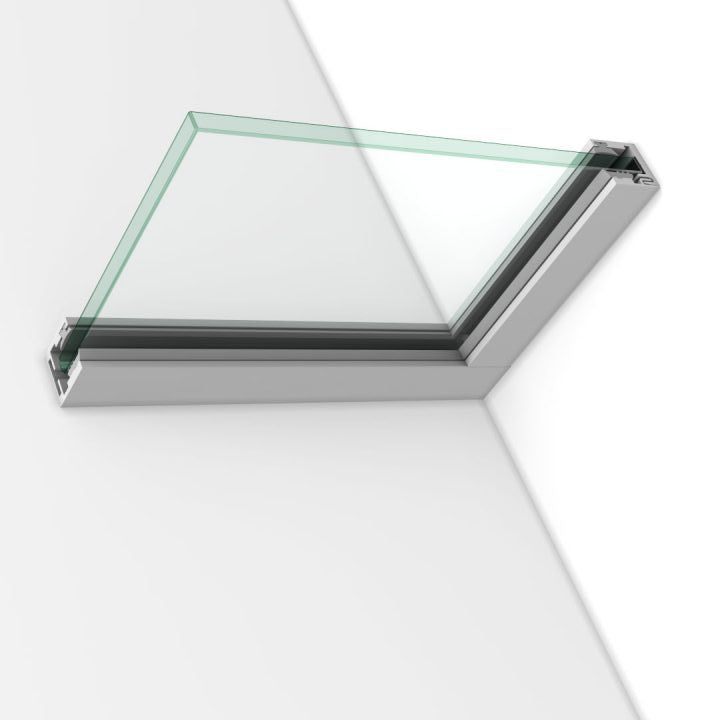

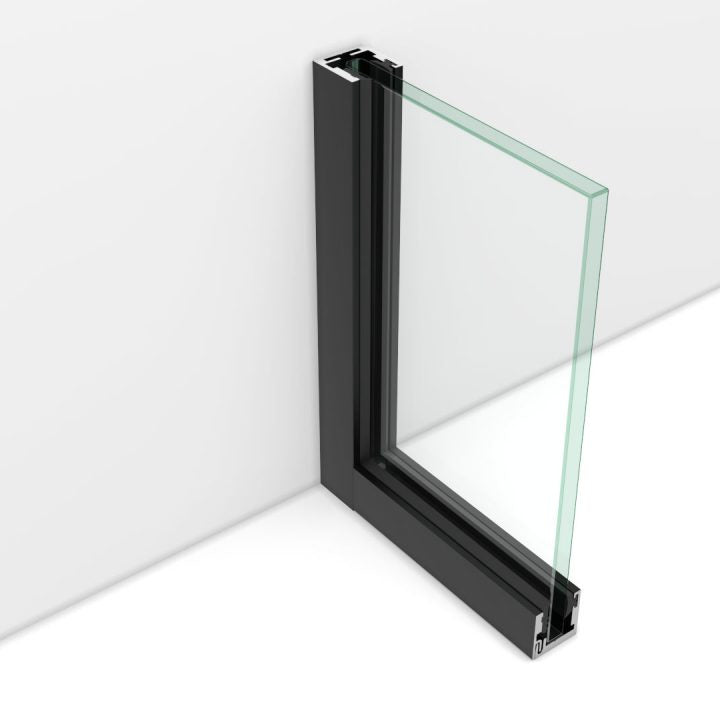

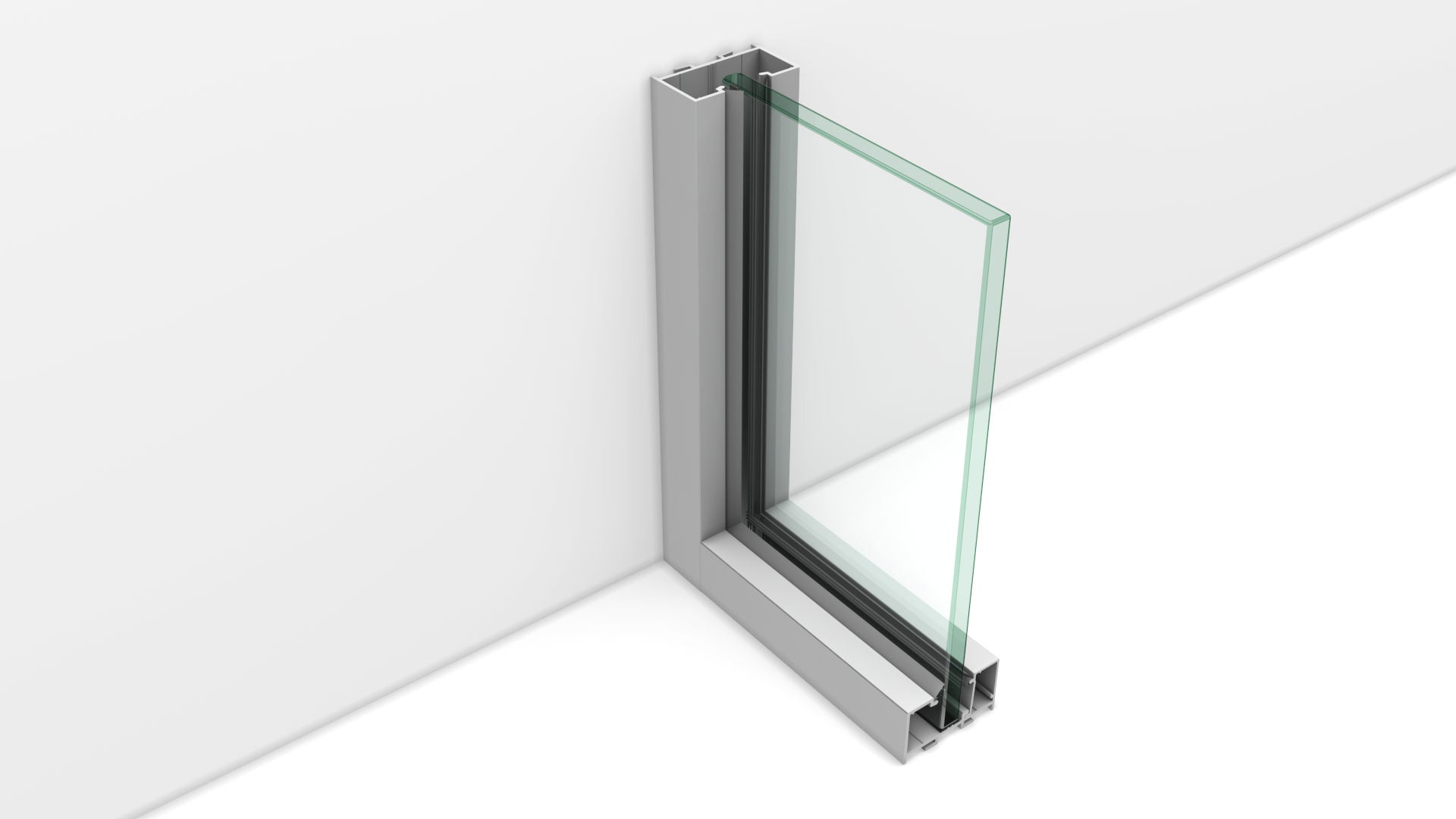

The Real Line glazed partitioning series 25 is a slim & classic lightweight profile system based on 25×25 mm Aluminium Profile. The Real Line series 25 selection of extrusions allows a variety of applications. The glazing frame accepts glass from 8mm to 12mm thick, providing an elegant and cost effective design solution.
FEATURES
Standard Partition Section: 25mm x 25mm. Suitable for 8mm / 12mm toughened glass as well as Laminated glass ranging from 8mm to 12mm. Partition height range 2100mm to 3000mm. Single glazed profile.
DOOR OPTIONS: Floor Spring Glass Door / Glass Door with Rebate / Stile Door with Rebate / Flush Door.
SIZE LIMITS: Designed for installation in areas up to nominal vertical panel size of 900x3000mm.
Color Options: Black & Silver Anodized. Material Code: RL101, RL102, RL103 with EPDM Gaskets & Accessories. Installation: Screw Fixing.
